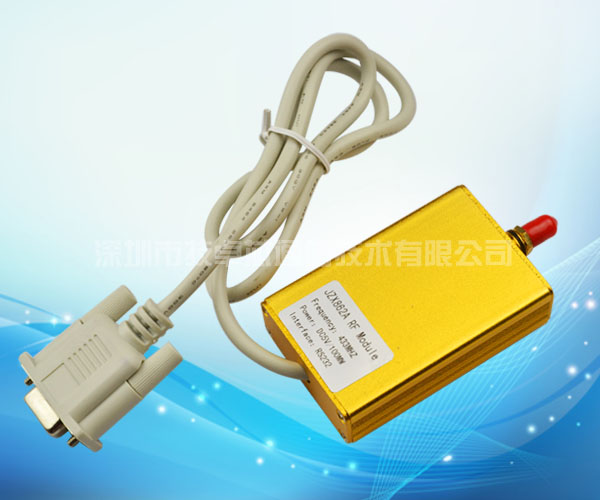

Product features:
Using CC1000 chip, small volume, convenient use of aluminum alloy shell, embedded.
The receiving current small, RF shielding, strong interference resistance, stable and reliable transmission.

Product application:
Wireless queuing system, the physical detection intelligent equipment, measuring equipment, automatic control, Home Furnishing intelligent field data control and data transmission.

The technical indexes of the product:
It uses GFSK modulation, reliable transmission line of sight distance up to 500m;
The carrier frequency of 433 MHz, can also be customized 868M/915M and other carrier;
It provides 8 channels;
The interface / channel rate: 1200/2400/4800/9600/19200bps;
The interface mode: TTL, RS-232, RS-485 selected by the user;
The data transceiver conversion automatically, as long as the interface to the sending / receiving data can be, the switching time is short;
It can be used for point to point, point to multi point, point to multipoint communication combination etc.;
The transparent data transmission, data frame transmission longer;
False data filtering out the air auto generated, long-term use of good reliability, low failure rate;
The power supply requirements: TTL:DC +2.8V~+3.3V or +3.6V~+5.5V, RS-232/RS-485:DC +4.5V~+5.5V;
The low power consumption and sleep function: power 100MW, receives the current <10mA, the emission current <100mA;
The temperature of 75 DEG C: -25;
The volume: 70mm * 45mm * 19mm (not including antenna); weight: 91 grams;
The interworking model: JZ862A, JZ861, JZ863, JZ864A;
The standard antenna: small rod antenna.
