  • JZX835 micro power data transmission module

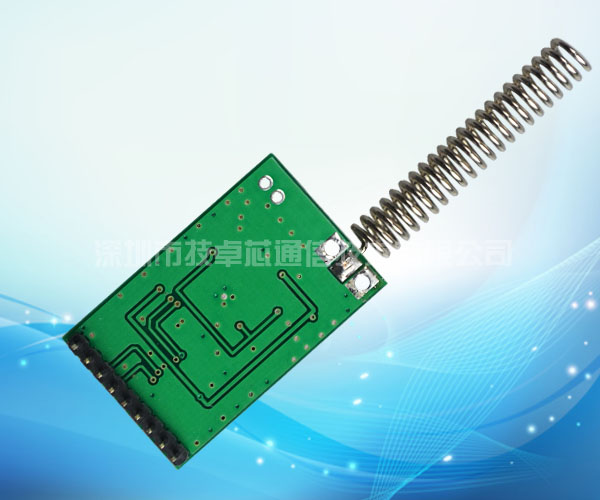

JZX835 micro power data transmission module

Transmission distance: 700M
Power: 50MW
Volume: 30.8mm*19.4mm*6mm (not including antenna)
Hotline:0755-86714296
The product features and parameters:
The working frequency: 433MHz user can be customized
Transmitting power: 50mW (17dB)
The receiver sensitivity: -115dBm
Emission current: 90<mA
The receiving electric current: <5.5mA
Dormancy current: <1.uA
Channel rate: 1200/2400/4800/9600/19200Bit/s user can be customized
Serial port rate: 1200/2400/4800/9600/19200Bit/s user can be customized
Interface type: TTL
Data format: 8E1/8N1/8O1 user interface can be customized
The working power supply: DC 3.0~5.5V customized 2.5~3.6V
Working temperature: -20 degrees centigrade and 75 degrees centigrade
Work humidity: 10% to 90% relative humidity, no condensation
The outer shape size: 30.8mm*19.4mm*6mm
