Product features:

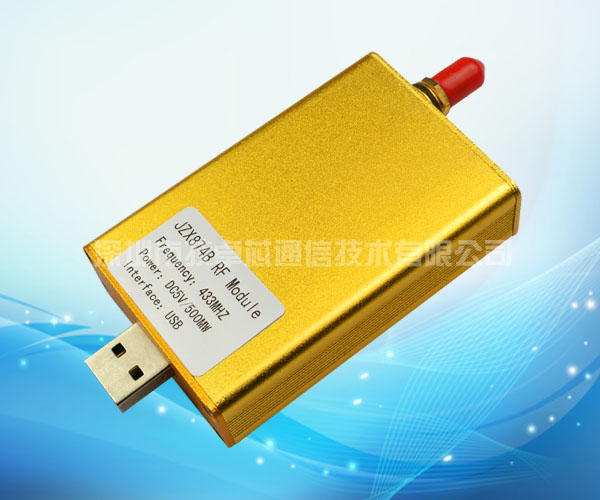

Using CC1020 chip, small volume, aluminum alloy shell, USB interface, plug and play, easy to use.
Narrowband anti-jamming, high receiving sensitivity, large transmission power, stable and reliable, long distance.

Product application:
Data control and data transmission electrical water table three site copy, wireless LED display screen, smart card, access control attendance, reactive power compensation, intelligent teaching equipment, physical detection intelligent equipment, measuring equipment, automatic control, Home Furnishing intelligent field etc..

The technical indexes of the product:
It uses GFSK modulation, reliable transmission line of sight distance up to 2000m;
The carrier frequency of 433 MHz;
It provides 8 channels;
The interface / channel rate: 1200/2400/4800/9600/19200/38400bps;
The interface mode: USB;
The data transceiver conversion automatically, as long as the interface to the sending / receiving data can be, the switching time is short;
It can be used for point to point, point to multi point, point to multipoint communication combination etc.;
The transparent data transmission, data frame transmission longer;
False data filtering out the air auto generated, long-term use of good reliability, low failure rate;
The power: power 500MW, receives the current <15mA, the emission current <100mA;
The power supply: DC +4.5V~+5.5V;
The temperature of 75 DEG C: -25;
The volume: 70mm * 45mm * 19mm (not including the antenna base); weight: 70 grams;
The exchange type: JZ87 series products;
The standard antenna: short, Long Elbow elbow antenna antenna or small chuck antenna.
